Granulator

CF-45
0.00
Description:
The granulator are usually used to process the mixed plastic or rubber materials into small pellets.
< Prev: Dispersion kneader Next > None

Application:

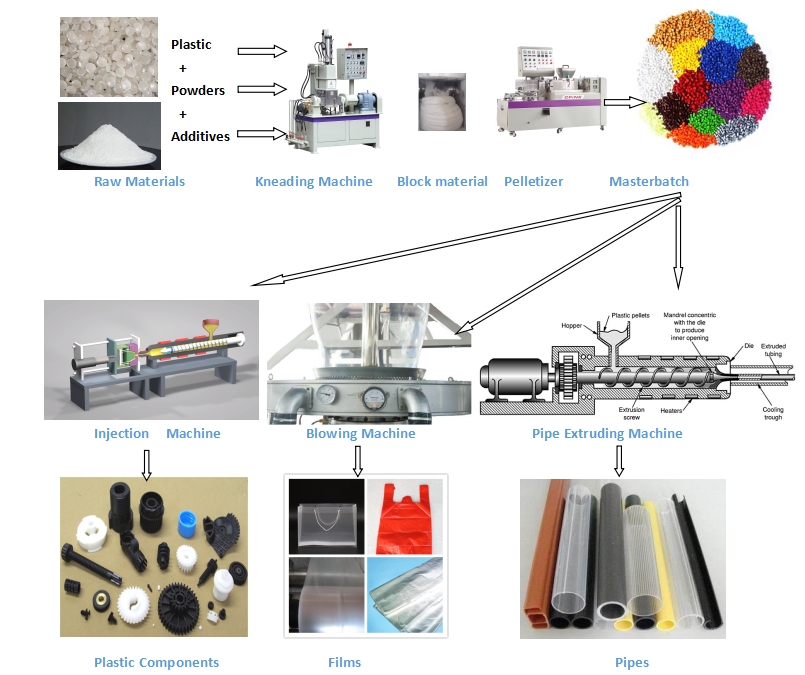

 CFine's Dispersion kneaders are used widely for the following applications:

   1)Plastic Compounds & End Products

        HDPE, LDPE, PP, PVC, ABS, PS, EVA Thermoplastics compounds & profiles wire covering, BMC etc.

   2)Rubber Compounds & End Products

        Natural Rubber, Synthetic Rubber Mastication of NR, IIR, SBR, CR, EPDM, Fluorine Rubber, Silicone Rubber. Rubber Tires, Packing Gaskets, Hose Belts, Shoe Sole, Sponge, Electric Wire Covering, Casters, Golf Balls, Oil Seal, Weather Strips, Water Proof Sheet, EVA, Thread Compound Battery Containers , tubes ,Conveyor belts etc.

Granulator advantages:


1. Low-voltage electrical appliances are imported from Taiwan, with long service life and stable operation.

2. The motor uses Taiwan brand Dongyuan Motor, or a well-known brand Siemens.

3. The barrel and screw are made of 38GrMOALA imported alloy steel. After quenching and tempering, 72 hours vacuum nitriding, wear-resistant treatment, high hardness up to HV950~1050, long service life.

4. Transmission system, high torque design, the main bearings adopt imported parts, reasonable oil-immersed lubrication combined with key parts forced lubrication device, and interlocking protection device to ensure reliable and stable operation of the main engine.

5. Sound and light fault alarm and quick lock fault point control functions, all materials in contact with the material are made of stainless steel, energy saving and durable.

6. This machine is equipped with Dongyuan inverter, and the pelletizing speed is adjustable. Easy to operate and easy to learn.
