Description:

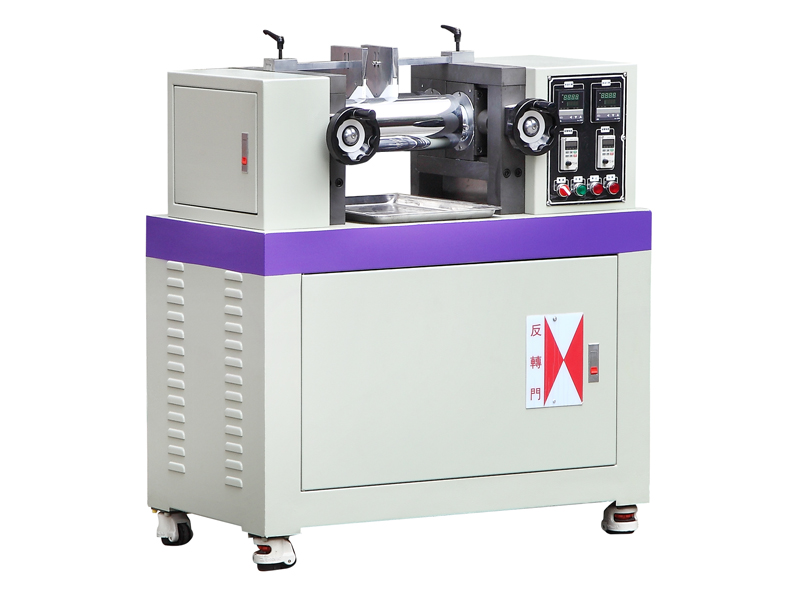

The two rolls mixing mill is usually used for rubber and plastic industries.
< Prev: Dispersion kneader
Next > Platen press machine
Open mixing mill is mainly used to uniformly mix the raw material and additinal agents for testing and apply the experiment resoults and its ratio in the production line to satisfy the requirement of quality and color specified by the customer.
• Built-in heater,together with LCD temperature controller and high-precision sensor,can automatically compensate the temperature to guarantee the temperature equalization.
• Telfon stop block.
• Taiwan gear motor,together with high-precision gearing chain,guarantees stable operation,low noise and good durability.
• Emergent reverse guarantees the safety.
• Alternative configuration:oil heating and cooling system,AC frequency control system,independent limitless speed change,automatic roller-gap adjustment ande man-machine interface.
• Relyng on the principle of customer-based, the company can customize the product according to the customer's requirements.
Technical parameter:
| CF-401A | CF-401B | CF-40C | CF-401D | |
| Mixed Capacity | 0.5-1kgs or designated | 0.5-1kgs or designated | 0.5-1kgs or designated | 0.5-1kgs or designated |
| Temperature of Roller | normal temperature-300°C | normal temperature-300°C | normal temperature-300°C | normal temperature-300°C |
| Precision of Tempetature(5°C) | ±2-±1.5 | ±2°-±1.5 | ±2-±1.5 | ±2 |
| Heating Mode | electrical heating or oil heating | electrical heating or oil heating | electrical heating or oil heating | current regulation |
| Revolution of the Roller | 18r/min | 0-40r/min single-frequency limitless speed change | 0-40r/min dual-frequency limitless speed change | 0-40r/min dual-frequency limitless speed change |
| Speed Ratio | 1.2:1 | 1.2:1 | self-mobilization | self-mobilization |
| Size of the Rller (mm) | Φ120*L350 | Φ120*L350 | Φ120*L350 | Φ120*L350 |
| Roller Pitch (mm) | 0.1-5 adjustable | 0.1-5 adjustable | 0.1-10 adjustable | 0.1-10 adjustable |
| Safety Device | many touch-type emergency stoppers | many touch-type emergency stoppers | many touch-type emergency stoppers | many touch-type emergency stoppers |
| Motor | 1HP | 1HP | 1HP2 sets | 1HP2sets |
| Power | 7-10HP | 7-10HP | 8-11HP | 8HP |
| Volume(W*D*H mm) | 1000*550*1200 | 1000*550*1200 | 1100*650*1500 | 1100*650*1500 |
